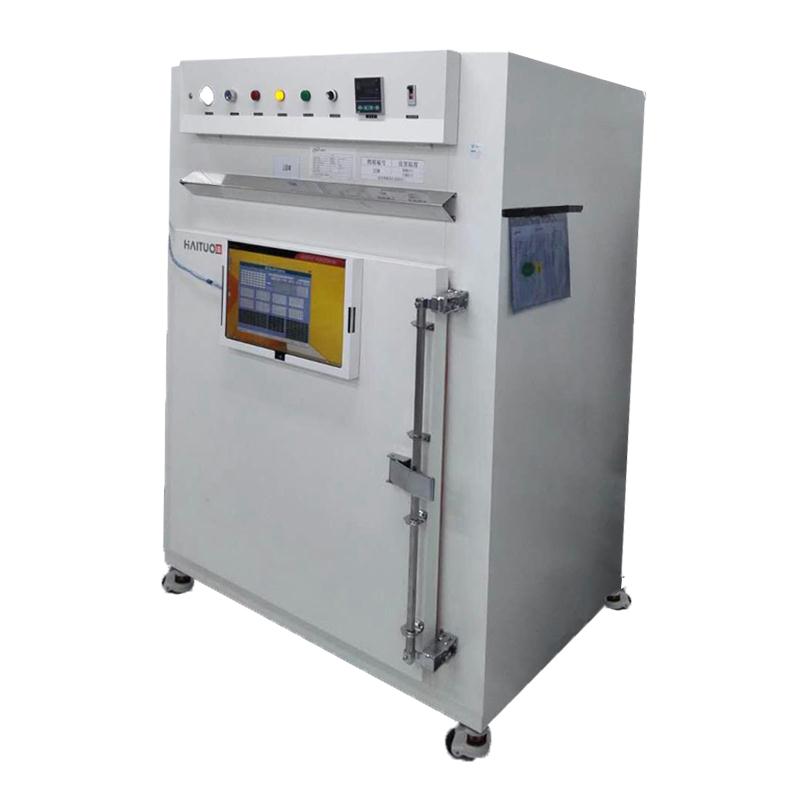

On-line High Temperature Aging Chamber

Product description：

Feature：

1.Class 10, 000 clean, to avoid contamination of the module or COB under test

2. Support SFP/SFP+, XFP, QSFP28 and other encapsulation forms

3. IIC communication, support 8472 protocol, 8077 protocol, 8436 protocol, etc

4 Support single module current 0~1.5A, ±0.5%FS±2mA, can be used for different modules

5 Configure different over-current protections

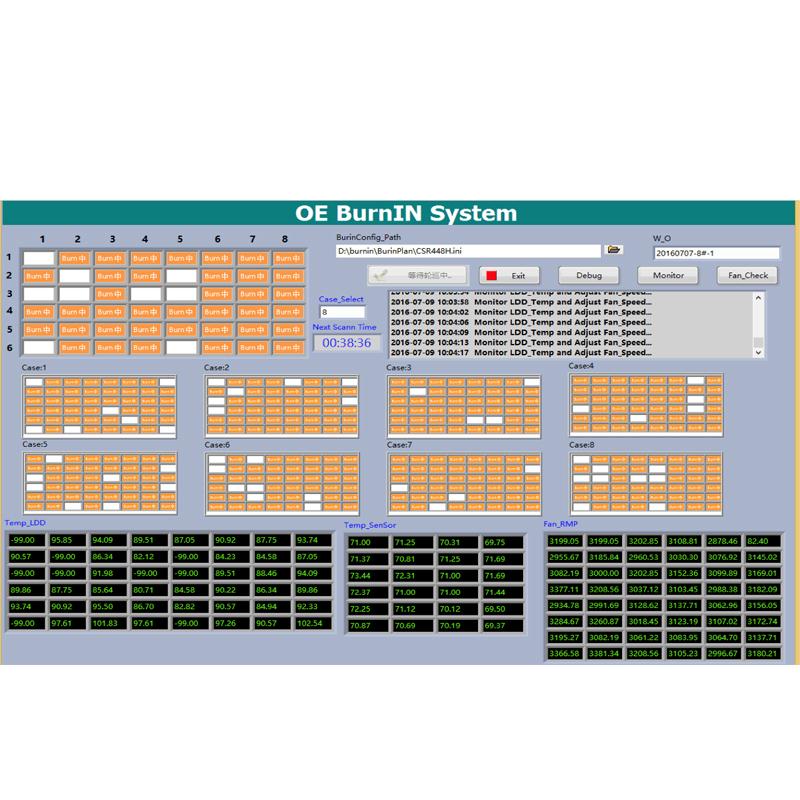

6. It can monitor the working current of each module and automatically identify whether the module fails

7. Failure judgment can be set

Product data download：

Share to:

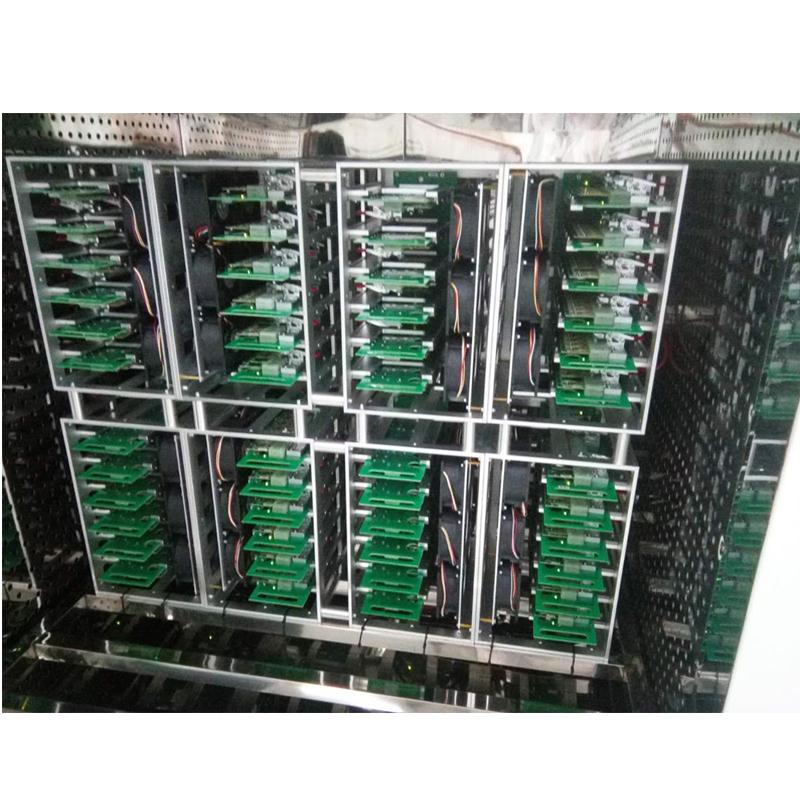

Layer	2 chambers，each chamber contains 42 circuit broad inside，a total of 84 pieces.
Board module numbers	? Each board contains 8 modules
? Number of ????modules that ??can be accommodated ? ?	672 pieces
Optical module interface	IIC?interface，compatible IIC 8472、IIC 8436 ；
Optical module power	3.0V~3.5V Adjustable software, output fluctuation≤1%；
? Channel drive capacity	SFP+ module ≥300mA， QSFP+module≥600mA， over-current protect range 20~1000mA；
Current detect accuracy	0.1mA，deviation≤3%；
Voltage detect accuracy	4mV，deviation≤3%；
Bracket thermistor	±2℃；
Others	Provide ESD/EOS monitoring of 3.3V module power supply.

Power supply	3 Phase?5 wire?AC380V±10%，≤10KW
Environment	The temperature around the device shall be +20~+30℃.
